AVerMedia D133S CarrierBoard (for Orin NX / Orin Nano, Support Super Mode)

PRODUCT IS CURRENTLY NOT AVAILABLE !

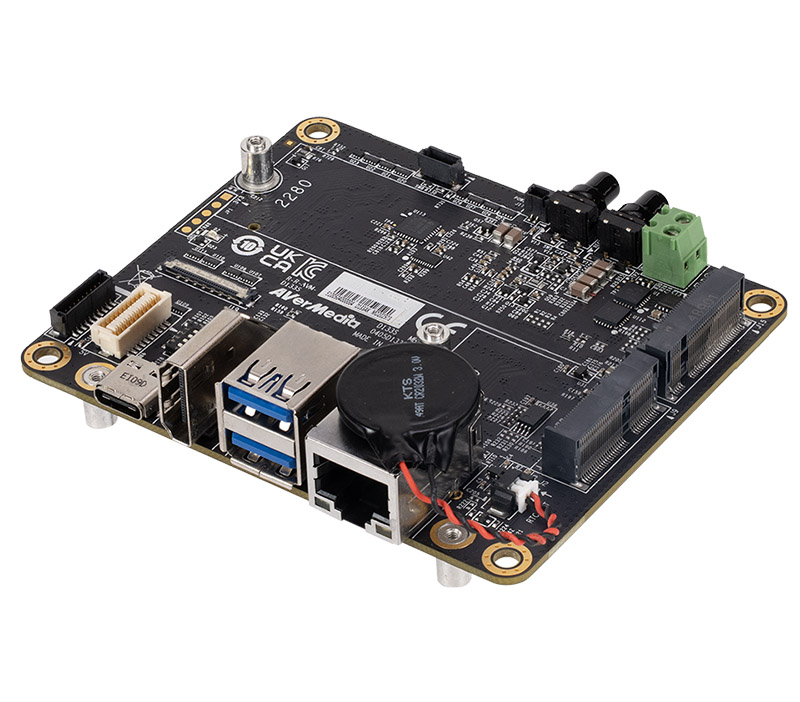

AVerMedia D133S CarrierBoard (for Orin NX / Orin Nano, Support Super Mode)
  • NVidia Jetson Orin NX/Nano !
  • Super Mode !
  • Carrier Board !

AVerMedia’s D133S Carrier Board support powerful NVIDIA® Jetson Orin NX/ Orin Nano modules. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities

D133S Carrier Board is designed for the industry applications with spatial concern and compact yet efficient for rapid AI-based solution development and seamless deployment as required by demanding business applications.

AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MOQ, in addition to NVIDIA’s JetPackTM SDK.

  • Applies to NVIDIA® Jetson Orin NX/ Orin Nano module
  • Suppor [more]

    Share

AVerMedia’s D133S Carrier Board support powerful NVIDIA® Jetson Orin NX/ Orin Nano modules. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities

D133S Carrier Board is designed for the industry applications with spatial concern and compact yet efficient for rapid AI-based solution development and seamless deployment as required by demanding business applications.

AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MOQ, in addition to NVIDIA’s JetPackTM SDK.

  • Applies to NVIDIA® Jetson Orin NX/ Orin Nano module
  • Supports super mode
  • 1 x HDMI output
  • 1 x GbE & 2 x USB 3.2
  • 2 x M.2 for SSD/wifi
  • 20-pin expansion header
  • 1 x OOB for Power cycling and Cloud serial console (Optional)
  • 1 x 5G daughter board for 4G/5G functions (Optional)
  • Operating temperature: -40°C ~ 85°C
  • Dimension: W: 90mm x L: 76mm x H: 27mm


Model

D133S

Type

Carrier Board

NVIDIA GPU SoC Module Compatibility

NVIDIA® Jetson Orin NX/ Orin Nano module
Super Mode Support

Networking

1 x GbE RJ-45
1 x M.2. key E 2230 for wifi

Display Output

1 x HDMI output 3840 x 2160 at 60Hz for Orin NX, 30Hz for Orin Nano

Temperature

Operating temperature -40°C~85°C
Storage temperature -40°C ~ 85°C
Relative humidity 40 °C @ 95%, Non-Condensing

MIPI Camera Inputs (internal)

2 x 4 lane MIPI CSI-2, 22 pin FPC 0.5mm Pitch

USB

1 x USB 2.0 type C for recovery
2 x USB 3.2 Type-A

Storage

2x NVMe M.2 Key M 2280 (1x only support S1 Type Top side component SSD)

TPM

Built in Infineon SLB 9672 TPM Chip

Expansion Header

20 pins: 2x I2C, 1x UART, 9x GPIOs 15 pins: support OOB module (optional, sold separately)*
5 pins & 30 pins: support 4G/5G functions via daughter board (optional, sold separately)*

Security

TPM 2.0 supported

Input Power

3.5mm Screw Terminal; 12V/5A, 9V~24V is recommended.

Power Cord

US/JP/EU/UK/TW/AU/CN (optional)

Thermal solution

Fan solution (12V fan wafer)

Buttons

Power and Recovery

RTC Battery

Support RTC battery and Battery Life Monitoring by MCU

PCB/Electronics Mechanical Info

90mm x 76mm (3.54” x 2.99”) W/O mounting hole
Weight: 70g

Certifications

CE, FCC, VCCI, KC (TBD)

Package

1x D133S Carrier board
DC IN jack cable
screws

Data sheet Download (PDF)
Data sheet Print view
